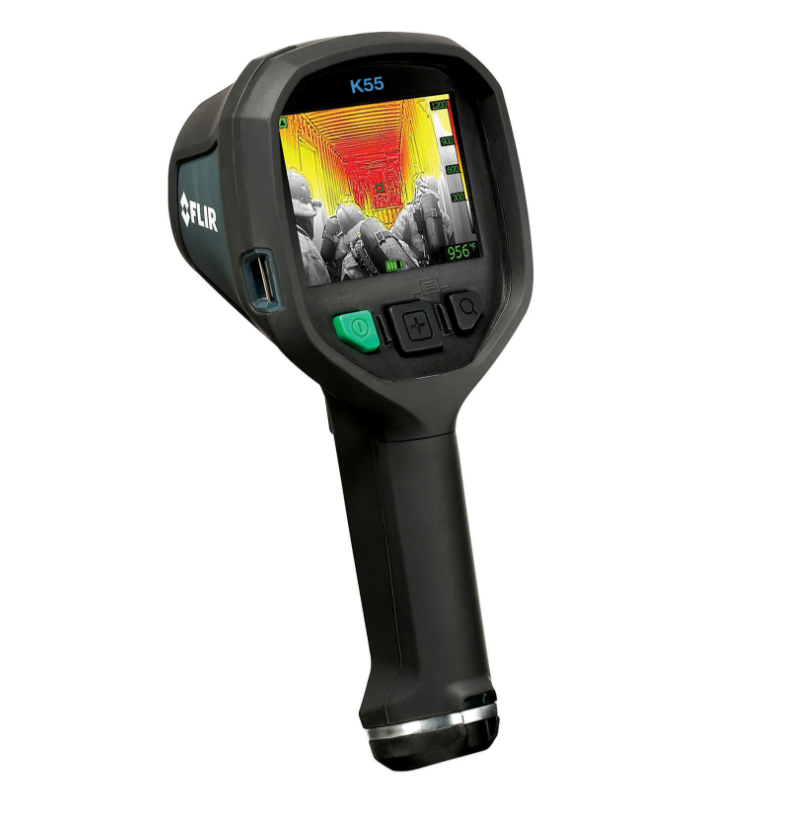

FLIR K55 Thermal Camera Kit

With a FLIR K55 TIC in hand, you can attack fires more strategically, maneuver through smoke more easily, and save lives. The K55 displays crisp thermal images on a bright LCD, helping you navigate better and expedite critical decisions. The 320 x 240 pixel IR sensor and FSX™ Flexible Scene Enhancement produce detail-rich imagery at a 60 Hz frame rate that keeps up with the action.

CRISP, CLEAR IMAGERY

The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smokey conditions.

IN-CAMERA VIDEO STORAGE

Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.

EXPANDED WARRANTY

K55 cameras are protected by FLIR's 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.

SPECIFICATIONS

Detector Type - Focal plane array (FPA), uncooled microbolometer
Focal Length - 9 mm (0.35 in.)
IR Resolution - 320 × 240 pixels
Languages - English
Material - PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy
Packaging Size - 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
Pitch - 25 µm
Report Generation - Separate software (FLIR Tools)
Set-up Commands - Local adaptation of units, date and time formats
Spectral Range - 7.5–13 µm
Tripod Mounting - UNC ¼"-20 (adapter needed)
Zoom - 2× digital zoom
Compatible with FLIR software - FLIR Tools®

Interface - Update from PC devices Data transfer to and from PC
Storage Media - Internal flash memory
USB - USB Mini-B

Directives - Designed to meet NFPA 1801:2018 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability

Drop - 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
EMC - EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission) - Encapsulation
IP 67 (IEC 60529) - Humidity (Operating and Storage)
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles -Magnetic fields - EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Operating Temperature Range - –20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.
Relative Humidity - 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
Shock - 25 g (IEC 60068-2-27)
Storage Temperature Range: –40°C to +85°C (–40°F to +185°F)
Vibration: 2 g (IEC 60068-2-6)

IMAGING OPTICAL

Camera size (L x W x H) - 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
Camera weight incl battery - 1.1 ±0.05 kg (2.4 ±0.1 lb.)
Contrast optimization - Digital image enhancement using FSX
Depth of Field - 0.84 m to infinity (33 in. to infinity)
f-number - 1.25
Field of view (FOV) - 51° × 38°
Focus - Fixed
Image Frequency - 60 Hz
Image Modes - IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
Non-radiometric IR video recording - MPEG-4 to internal flash memory
Non-radiometric IR video streaming - Uncompressed colorized video using USB
Spatial resolution (IFOV) - 2.8 mrad
Storage Capacity - 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images.

MEASUREMENT ANALYSIS

Accuracy: ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Automatic Hot Detection - Heat detection mode (the hottest 20% of the of scene is colorized)
Isotherm - Yes
Object Temperature Range: –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
Spot Meter - 1.0
Thermal Sensitivity/NETD - 30 mK @ 30°C (86°F)

METER DATA

Auto Range - Yes, selectable on/off using FLIR Tools®

Display - 4 in. LCD, 320 × 240 pixels, backlit

POWER

Battery capacity - 4.4 Ah, at 20°C to 25°C (68°F to 77°F)
Battery operating time - Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type - Li Ion
Battery voltage - 3.6 V
Battery weight - 0.152 kg (0.3 lb.)
Charging system - Battery is charged inside the camera 2-bay charger Optional In-truck charger
Charging Temperature - 0°C to 45°C (32°F to 113°F)
Charging Time - 2 h to 85% capacity, charging status indicated by LEDs
Power Management - Automatic shutdown and sleep mode
Safety [power supply] - CE/EN/UL/CSA/PSE 60950-1
Start Up Time - 17 s. (IR image, no GUI)
Start-up time from sleep mode - 4 s.

STORAGE MEDIA

File Formats - Standard JPEG
Image Storage - Standard JPEG; Image freeze: configurable
Image Storage Capacity - 200 files in total. The total number of files is co-dependent on the number of saved video clips.
Image Storage Mode - IR only
